Kia Cadenza: Mirrors / Programming
.jpg)

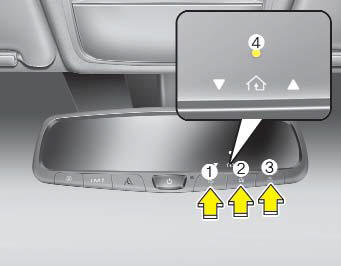

1. Press and release (1), (2) or (3)
button.
- If the indicator (4) is turned ON in
Orange, go to Step 3 since it is a
new programming.
- If the indicator (4) is continuously
turned ON or flashes in Green
rapidly several times, go to Step 2
since it is a programmed button.
2. Press and hold the button you
wish to program for approximately
15-25 seconds until the LED flashes
in Orange for several times.

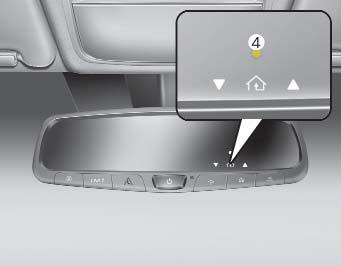

3. Hold the Garage Door Opener
Original Transmitter (OT) near the
HomeLink Mirror.
.jpg)
4. Press the Original Transmitter
(OT) button until the indicator (4) is
turned continuously ON or flashes
in Green for approximately 10 seconds
and it indicates the programing
is completed.
✽ NOTICE
- Some garage door openers require
to press the programmed button
on the mirror up to three times
right after the programming is
just completed to operate the
garage door.
- The indicator (4) is turned ON in
Orange and flashes for about 60
seconds, during the programing
mode and if a programing is not
succeeded within the 60 seconds,
the programing mode will be
abort.
HomeLink® should now activate your
rolling code equipped device.
