Kia Cadenza: Seat / Rear seat adjustment

Kia Cadenza YG 2016-2025 Owners Manual / Safety features of your vehicle / Seat / Rear seat adjustment

Headrest

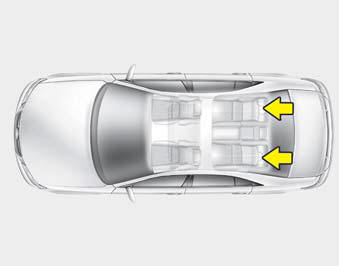

The rear seat is equipped with headrests in all the seating positions for the occupant's safety and comfort.

The headrest not only provides comfort for passengers, but also helps protect the head and neck in the event of a collision.

For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's heads is similar with the height as the top of their eyes.

Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

Adjusting the height up and down

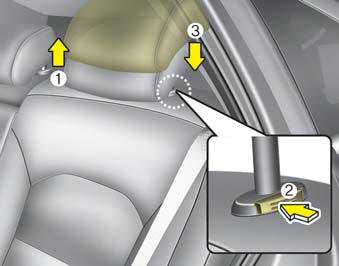

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Removal and reinstallation

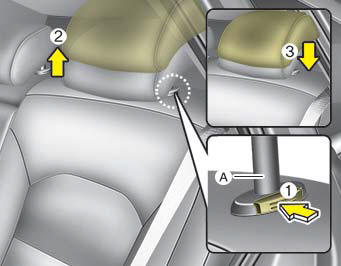

To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest upward (2).

To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (1). Then adjust it to the appropriate height and ensure that it locks in position.

Seatback pocket
The seatback pocket is provided on the back of the front passenger’s and driver’s seatbacks. WARNING - Seatback pockets Do not put heavy or sharp objects in the seatback pockets. In ...

Armrest
To use the armrest, pull it forward from the seatback. Cup holder and multi box To use the cup holder, lift the cover up (2). Carrying long/narrow cargo Additional cargo space is provide ...
