Kia Cadenza: Features of your vehicle / Rear View Monitor (RVM)
.jpg)
.jpg)

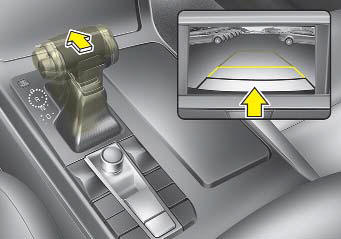

Rear View Monitor will activate with
the Engine Start/Stop button is
turned ON and the shift lever in the R
(Reverse) position.
This system is a supplemental system
that shows behind the vehicle
through the rearview display mirror
while backing-up.
- This system is a supplementary
system only. It is the responsibility
of the driver to always check the
inside/outside rearview mirrors and
the area behind the vehicle before
and while backing up.

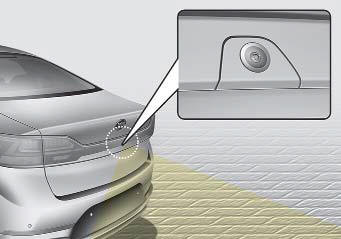

- Always keep the camera lens
clean. If lens is covered with foreign
matter, the camera may not
operate normally.
WARNING - Backing &
using camera
Never rely solely on the rear view
monitor. You must always use
methods of viewing the area
behind you including looking
over both shoulders as well as
checking all three rear view mirrors.
Due to the difficulty of
ensuring that the area behind
you remains clear, always back
up slowly and stop immediately
if you suspect that a person, and
especially a child, might be
behind you.
