Kia Cadenza: Features of your vehicle / Surround View Monitoring (SVM)
.jpg)

Surround View Monitoring is not a
substitute for proper and safe parking
procedures. Surround View
Monitoring may not detect every
object surrounding the vehicle.
Always drive safely and use caution
when parking.

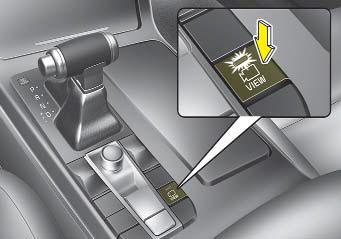

Surround View Monitoring can assist
in parking by allowing the driver to
see around the vehicle. Push the button
into the [ON] position to operate
the system.
To cancel the system, push the button
again.
Operating conditions
- When the ENGINE START/STOP
button is ON position
- When the transaxle is on D, N or R
- When the vehicle speed is not over
9 mph (15 km/h).
- When the vehicle speed is over 9
mph, SVM is turned off. If the vehicle
speed then decreases below over 9
mph (15 km/h) SVM will not automatically
turn on again. To operate
again, push the button.
- When the vehicle moves backwards,
regardless of On/Off of button
and vehicle speed, SVM operates
automatically.
- Surround View Monitor auto activation
is activated or deactivated
when you select ‘Settings →
Vehicle → Driver Assistance →
Parking safety → Surround View
Monitor Auto On’ from the Settings
menu in the Infotainment System
screen.
For more details, please scan the
QR code in a separately supplied
Car Infotainment System Quick
Reference Guide.
- When the trunk and driver/passenger
door are opened and the outside
mirror is folded, the warning is
illuminated in SVM
- If SVM is not operating normally, the
system should be checked by an
authorized Kia dealer.
WARNING
This system is a supplementary
system only. It is the responsibility
of the driver to always
check the area around the vehicle
before and while moving.
