Kia Cadenza: Towing / Removable towing hook
1. Open the trunk, and remove the
towing hook from the tool case.

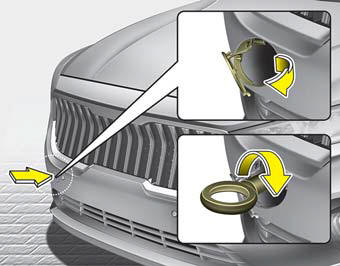

2. Remove the hole cover pressing
the upper part of the cover on the
bumper.
3. Install the towing hook by turning it
clockwise into the hole until it is
fully secured.
4. Remove the towing hook and
install the cover after use.
If emergency towing is necessary,
we recommend having it done by an
authorized Kia dealer or a commercial
tow-truck service. Proper lifting
and towing procedures are necessary
to prevent d ...
If towing is necessary, we recommend
you to have it done by an
authorized Kia dealer or a commercial
tow truck service.
If towing service is not available in an
emergency, your vehicle may ...
