Trouble Symptom Charts

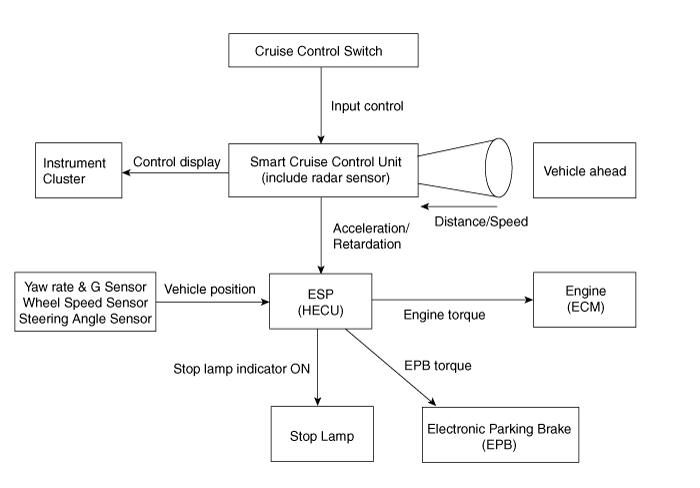

Component Parts And Function Outline
Component part
Function
Cruise Control Switch
Input the set speed and distance to the SCC ECU.
Instrument Cluster
Display various information inputted from SCC.
Smart Cruise Control Unit
Recognize and track the vehicle ahead.
Calculate the target speed and distance
Request the acceleration and retardation to ESP
ESP (HECU)
Automatic braking and request the engine torque control to the engine (ECM)
Request the EPB torque control to the Electronic Parking Brake (EPB)
Request the stop lamp indicator ON
Engine (ECM)
Control the engine torque
Electronic Parking Brake (EPB)
Control the EPB torque
Stop lamp
Stop lamp indicator ON

General Safety Information and Caution
Smart Cruise Control Be careful when driving the vehicle using the smart cruise control system as follows.     • The smart cruise control system may have limits t ...

Description and Operation
Description The smart cruise control system allows a driver to program the vehicle to control the speed and following distance detecting the vehicle ahead without depressing the brake pedal and ...
