Kia Cadenza: Outside rearview mirror / Folding the outside rearview mirror
Electric type

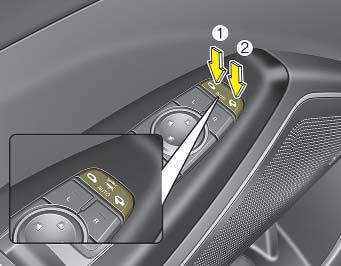

The outside rearview mirror can be
folded or unfolded by pressing the
switch as below.
Left (1) : The mirror will unfold.
Right (2) : The mirror will fold.
Center (AUTO) :
The mirror will fold or unfold automatically
as follows:
- The mirror will fold or unfold when
the door is locked or unlocked by
the smart key.
- The mirror will fold or unfold when
the door is locked or unlocked by the
button on the outside door handle.
- The mirror will unfold when you
approach the vehicle (all doors
closed and locked) with a smart
OYG049048L key in possession.(if equipped)
CAUTION - Electric type
outside rearview mirror
The electric type outside rearview
mirror operates even though the
ENGINE START/STOP button is in
the OFF position.However, to prevent
unnecessary battery discharge,
do not adjust the mirrors
longer than necessary while the
engine is not running.
Do not fold the electric type outside
rearview mirror by hand.This
could cause motor failure.
While the vehicle is moving in
reverse, the outside rearview mirror(
s) will move downward to aid
reverse parking. According to the
position of the outside rearview mirror
switch (1), the ...
