Kia Cadenza: Features of your vehicle / Instrument cluster

Kia Cadenza YG 2016-2025 Owners Manual / Features of your vehicle / Instrument cluster

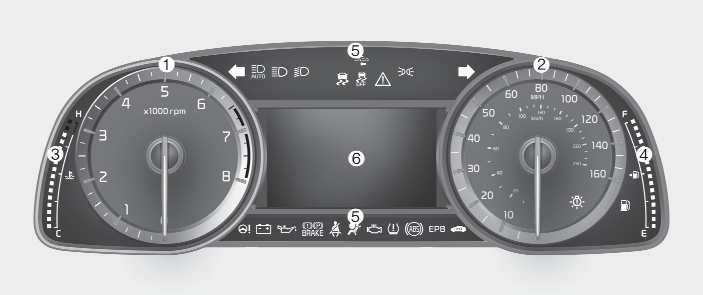

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display
