Kia Cadenza: Instrument cluster / Transmission Shift Indicator
Automatic Transmission Shift
Indicator

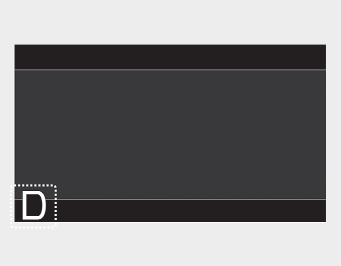

This indicator displays which automatic
transmission shift lever is
selected.
- Park :P
- Reverse : R
- Neutral : N
- Drive :D
- Sport Mode : 1, 2, 3, 4, 5, 6, 7, 8
Speedometer
The speedometer indicates the
speed of the vehicle and is calibrated
in miles per hour (mph) and/or kilometers
per hour (km/h).
Tachometer
The tachometer indicates the
appro ...
LCD Display Control
The LCD display modes can be
changed by using the control buttons.
(1) : MODE button for changing
modes
(2) : MOVE switch for changing
items
(3) OK : SELECT/RESET but ...
