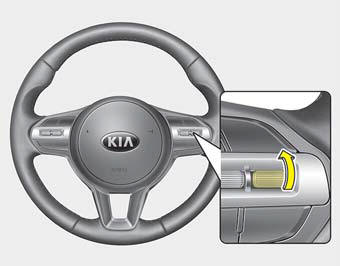

Kia Cadenza: Smart Cruise Control button
and switch / To increase Smart Cruise Control
set speed
Follow either of these procedures:
- Move the RES+ switch up, and
hold it. Your vehicle set speed will
increase by 5 mph (10 km/h).
Release the switch at the speed
you want.
- Move the RES+ switch up, and
release it immediately.The cruising
speed will increase by 1.0 mph (1.0
km/h) each time you move the
RES+ switch up in this manner.
- Although SCC will operate to a
maximum setting of up to 120 mph
(200 km/h), all local speed limit
laws must always be followed.
WARNING
Check driving conditions before
using the switch as driving
speed increases rapidly when
you push up and hold the
switch.
1. Press the CRUISE button, to turn
the system on. The Cruise indicator
( CRUISE) in the instrument
cluster will illuminate.
2. Accelerate to the desired speed.
Smart Cruise Control speed c ...
Follow either of these procedures:
Move the SET- switch down and
hold it. Your vehicle set speed will
decrease by 5 mph (10 km/h).
Release the switch at the speed
you want.
Move th ...
Other information:
Checking the engine oil level
1. Be sure the vehicle is on level
ground.
2. Start the engine and allow it to
reach normal operating temperature.
3. Turn the engine off and wait for a
few minutes (about 5 minutes) for
the oil to return to the oil pan.
4. Pull the dipstick out, wipe it c ...
Removal
Height Sensor
1.
Remove the height sensor connector (A).
2.
Loosen the mounting bolts(Body: 2EA, chassis: 1EA) from height sensor bracket.
Tightening torque :
3 ~ 5N.m (30 ~ 50kgf.m, 2.21 ~ 3.68lb-ft)
3.
Remove the height sensor.
HLLD (head lamp leveling device) Actuato ...
