Kia Cadenza: Power windows / Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.

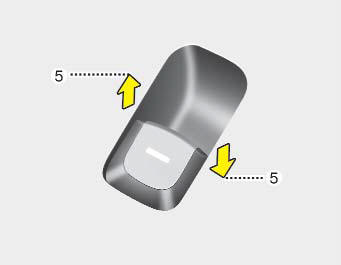

To open or close a window, press
down or pull up the front portion of
the corresponding switch to the first
detent position (5).
The ENGINE START/STOP button
must be in the ON position for power
windows to operate. Each door has a
power window switch that controls the
door’s window. The driver has a power
window loc ...
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers
or raises the window even when the
switch is released. To stop the window
at ...
