Kia Cadenza: Manual & Automatic reset / Accumulated driving information
mode

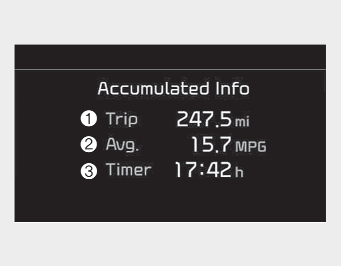

This display shows the accumulated
trip distance (1), the average fuel
efficiency (2), and the total driving
time (3).
- Accumulated information is calculated
after the vehicle has run for
more than 0.19 miles (300 meters).
- If you press “OK” button for more
than 1 second after the Cumulative
Information is displayed, the information
will be reset.
- If the engine is running, even when
the vehicle is not in motion, the
information will be accumulated.
Manual reset
To clear the average fuel economy
manually, press the OK button
(reset) on the steering wheel for
more than 1 second when the average
fuel economy is displayed.
Automatic reset
...
This display shows the trip distance
(1), the average fuel efficiency (2),
and the total driving time (3) information
once per one ignition cycle.
Fuel efficiency is calculated after
th ...
