Kia Cadenza: Manual & Automatic reset / One time driving information
mode

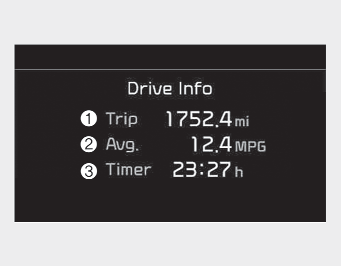

This display shows the trip distance
(1), the average fuel efficiency (2),
and the total driving time (3) information
once per one ignition cycle.
- Fuel efficiency is calculated after
the vehicle has run for more than
0.19 miles (300 meters).
- The Driving Information will be
reset 4 hours after ignition has
been turned off. So, when the vehicle
ignition is turned on within 4
hours, the information will not be
reset.
- If you press “OK” button for more
than 1 second after the Driving
Information is displayed, the information
will be reset.
- If the engine is running, even when
the vehicle is not in motion, the
information will be accumulated.
This display shows the accumulated
trip distance (1), the average fuel
efficiency (2), and the total driving
time (3).
Accumulated information is calculated
after the vehicle has run fo ...
Digital speedometer
This mode displays the current
speed of the vehicle.
Drive mode
This mode displays the currently
selected drive mode. ...
