Kia Cadenza: Manual heating and air conditioning / Climate information screen
selection
.jpg)

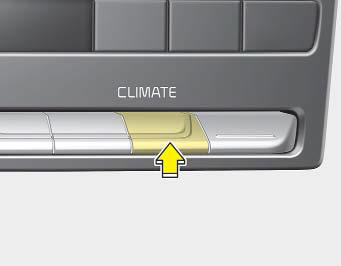

Press the climate information screen
selection button to display climate
information on the screen.
Press the front blower OFF button to
turn off the front air climate control
system. However, you can still operate
the mode and air intake buttons
as long as the Engine Start/Stop button
i ...
Ventilation
1.Set the mode to the position.
2.Set the air intake control to the outside
(fresh) air position.
3.Set the temperature control to the
desired position.
4.Set the fan speed contro ...
