Kia Cadenza: Power Door Locks / Power Door Lock Switch Repair procedures

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch Repair procedures

Inspection
Diagnosis With GDS
1.
It will be able to diagnose defects of DDM/ADM with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2.
Select model and "IPM".
3.
Select the "DDM (Power window main)" to check.
4.

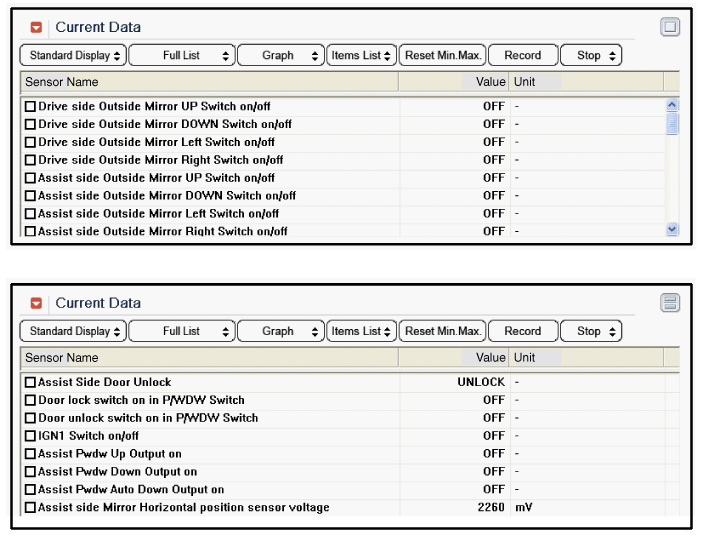

Select "Input/output monitoring", if you will check current data of power door lock system. It provides input/output status of DDM/ADM.

5.

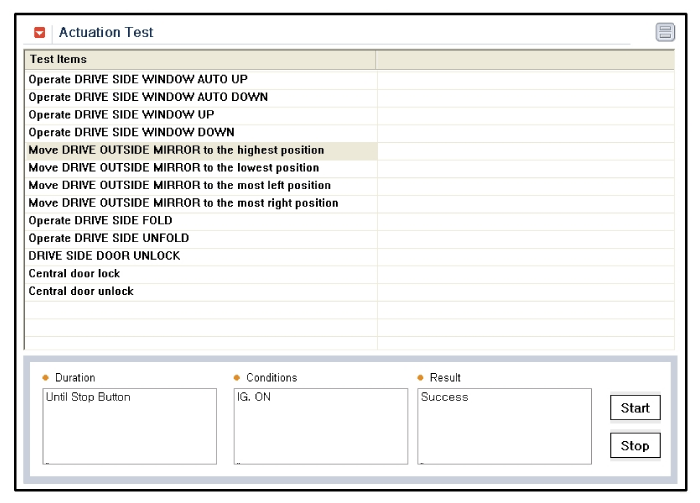

If you will check the power door lock operation forcefully, select "Actuation test".

6.

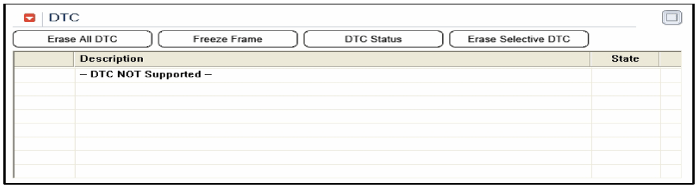

To check the DTC of the DDM/AMD module, select "Diagnostic trouble codes"

Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the front door trim panel.
(Refer to Body - "Front Door")
3.
Disconnect the power window switch module connector (A) from the wiring harness.

4.
Remove the power window switch module (A) from the door trim after loosening the mounting screws (13EA).

5.
Remove the module (A) from the sub box assembly after loosening the mounting screw (3EA).


Be careful not to damage door trim panel and door module mounting hooks.
Installation
1.
Install the power window switch module.
2.
Install the door trim panel after reconnecting the relevant connectors

Make sure that the power window switch module connectors are plugged properly.
Check that the power window switch and door lock switch operate normally.
