Kia Cadenza: Smart Cruise Control button
and switch / To turn Smart Cruise Control off

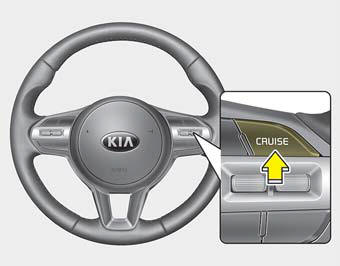

Press the CRUISE button. (the
CRUISE indicator in the instrument
cluster will go off).
When Smart Cruise Control is not
needed, press the [CRUISE] switch
and deactivate the system.
✽ NOTICE
Take the following precautions:
- If Smart Cruise Control is left on,
(cruise indicator in the instrument
cluster illuminated) Smart Cruise
Control can be activated unintentionally.
Keep Smart Cruise
Control off (cruise indicator turn
off) when Smart Cruise Control is
not used.
- Do not leave the vehicle when it is
stopped by SCC. If it is necessary
to leave the vehicle, turn off SCC
and move the gear shift to P
(Parking), engage the parking
brake, and turn off the engine
while depressing the brake pedal.
- Use SCC only on roads with good
traffic conditions. Do not use SCC
in the following situations because
of the high risk of an accident.
- Highway interchange and tollgate
- Road surrounded by multiple
steel constructions (subway construction,
steel tunnel, etc)
- Parking lot
- Lanes beside guard rail on a
road
- Slippery road with rain, ice, or
snow covered
- Abrupt curved road
- Steep hills
- Windy roads
- Off roads
- Rods under construction
- Rumble strip
- When driving near crash barriers
- When the vehicle sensing ability
decreases due to vehicle modification
that causes a difference in
the level of the vehicle's front
and rear
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain or sandstorm)
- Pay particular attention to the
driving conditions whenever using
Smart Cruise Control.
- Smart Cruise Control is not a substitute
for safe driving. It is the
responsibility of the driver to
always check the speed and distance
of the vehicle ahead.
- Be careful when driving downhill
using SCC.
- Smart Cruise Control should not
be used when the vehicle is being
towed.
- Always set the vehicle speed under
the applicable speed limit.
- Unexpected situations may lead to
accidents. Pay continuous attention
to road conditions and your
surroundings even when the Smart
Cruise Control is operating.
To adjust the sensitivity of Smart
Cruise Control
The sensitivity of vehicle speed
when following the front vehicle to
maintain the set distance can be
adjusted.
Go to the 'User Settings > Driver
Assistance > SCC Reaction >
Fast/Normal/Slow' on the LCD display.
You may select one of the three
stages you prefer.
If any method other than the
CRUISE button was used to cancel
cruising speed and the system is still
activated, the cruising speed will
automatically resume when you
move the RES+ switch u ...
This function allows you to program
the vehicle to maintain relative distance
to the vehicle ahead without
depressing the accelerator pedal or
brake pedal.
The headway will automatically ac ...
